Vertical Machining Center/Two-track

Vertical Machining Center/Two-track

Machine Characteristics:
  • The machine castings are made of high-quality Meehaner cast iron, which has been subjected to finite element analysis and a reasonable structure. The combination of strength and reinforcement provides a stable structure, which is not easily deformed and is highly rigid.
  • The X/Y axes use linear slides with low noise and low friction characteristics for fast displacement and optimum circular accuracy. Z-axis adopts a hard rail with a low friction coefficient of Turcite-B, which is durable and durable. Optimum cutting rigidity.
  • Wide and solid base, box-shaped column, wider and longer saddle, and full support for heavy loads. Solid construction for heavy-duty machining.
  • The spindle box is reinforced with a bone aid and the spindle box has a reasonable contact length with the column. Longer spindle lengths provide solid support for the spindle.
  • Direct drive and pre-positioning of the three-axis motor and precision high-speed ball screw Increased rigidity and precision.

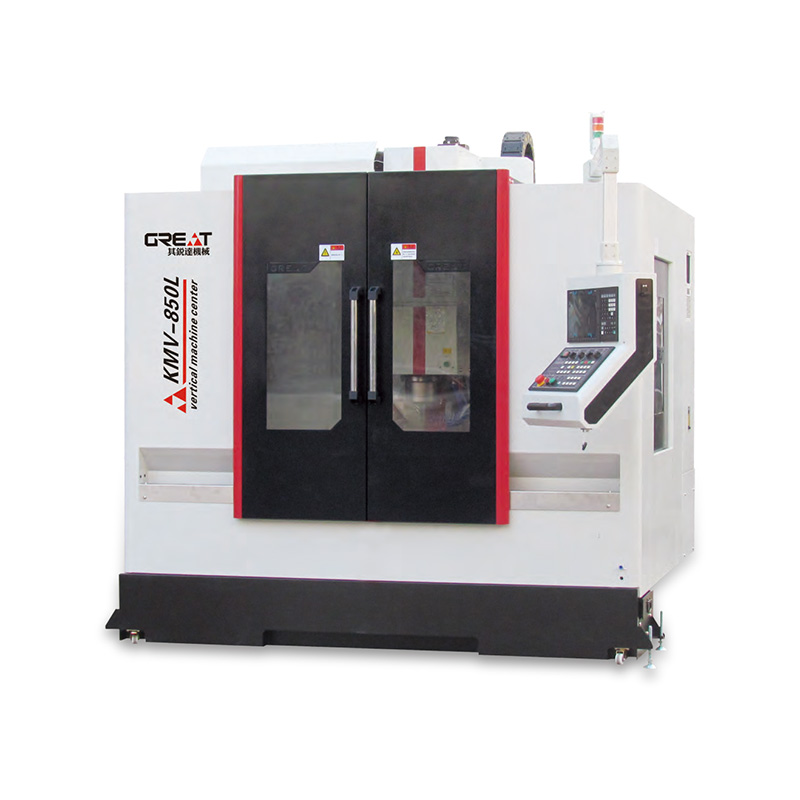

  • Vertical Machining Center/Two-track

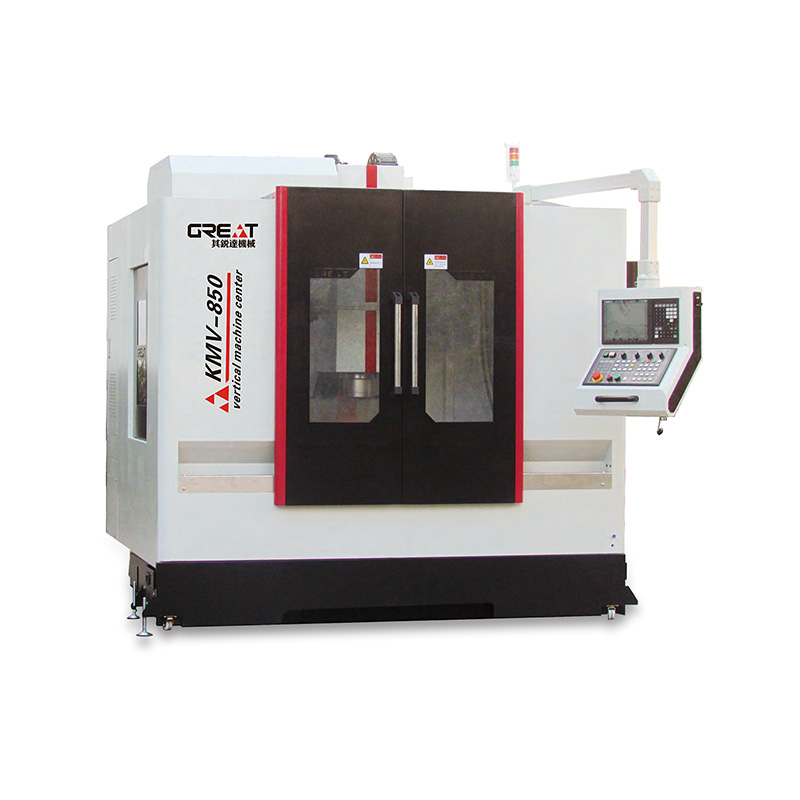

  • Vertical Machining Center/Two-track
  • Vertical Machining Center/Two-track
inquiry

Configuration

Standard Features
Japanese Mitsubishi CNC /Cutting cooling system /Automatic lubrication system /Electric box heat exchanger /Steel guard for guide rails /Electronic handwheel /USB, CF card interface /Work light /Warning light /Air gun

Optional configuration
Fanuc system /Tool arm type tool magazine /Spindle oil cooler /Automatic chip conveyor /Fourth (fifth) axis CNC turntable /Voltage regulator /Direct-connected spindles /Spindle centre out of water /Spindle ring discharge

Technical Parameters

Projects KMV-850L KMV-857L KMV-1060L KMV-1265L KMV-1270L
Itinerary X-axis travel(mm) 800 800 1000 1200 1200
Y-axis travel(mm) 500 500 600 650 700
Z-axis travel(mm) 500 700 600 650 600
Workbench Worktop area(mm) 1000×500 1000×530 1300×600 1380×600 1360×700
Max. working table load(kg) 450 600 600 900 1000
T-slot dimensions 5-18×90 5-18×100 5-18×100 5-18×110 5-18×122
Distance Distance from spindle end face to table(mm) 110-610 120-820 110-710 150-800 87-687
Distance from spindle centre to column guide(mm) 560 575 655 682 785
Main shaft Spindle bore taper BT40 BT40 BT40(or :BT50) BT40(or:BT50) BT50
Spindle speed(rpm/min) 8000 8000 8000 8000 8000
Spindle power(kw) 7.5/11 7.5/11 7.5/11(11/15) 7.5/11(11/15) 11/15
Feeds Rapid feed in three axes XYZ(m/min) 24124/20 24124/20 24124/20 24/24/20 24/24/15
Three-axis tangential feed(mm/min) 1-10000 1-10000 1-10000 1-10000 1-10000
Knife Depot Tool magazine capacity 16/24 16/24 16/24 16/24 24
Heaviest tool weight(kg) 8 8 8 16
Maximum tool length(mm) 350 350 350 350 350
Tool magazine form Knife arm type Knife arm type Knife arm type Knife arm type Knife arm type
Machinery Machine weight(kg) 5500 6000 7500 7600 9000
Mechanical dimensions(mm) 2650×2250×2700 2700×2300×2900 3000×2400×2800 3200×2400×2900 3200×2400×2900

Projects KMV-1370L KMV-1585L KMV-1685L KMV-1890L
Itinerary X-axis travel(mm) 1300 1550 1650 1800
Y-axis travel(mm) 700 850 850 9o0
Z-axis travel(mm) 700 850 850 9oo
Workbench Worktop area(mm) 1500×710 1700×850 1800×850 2000×900
Max. working table load(kg) 1200 1600 1600 1800
T-slot dimensions 5-18×110 7-18×125 7-18×125 7-18125
Distance Distance from spindle end face to table(mm) 50-750 120-970 120-970 95-995
Distance from spindle centre to column guide(mm) 725 935 935 935
Main shaft Spindle bore taper BT50 BT50 BT50 BT50
Spindle speed(rpm/min) 8000 8000 6000 6000
主轴功率(kw) 11/15 15/18.5 18.5/22 18.5/22
Feeds Rapid feed in three axes XYZ(m/min) 24/24/15 24/24/15 15/15/12 15/15/12
Three-axis cutting feeds(mm/min) 1-10000 1-10000 1-10000 1-10000
Knife Depot Tool magazine capacity 24 24 24 24
Heaviest tool weight(kg) 16 16 16 16
Maximum tool length(mm) 350 350 350 350
Tool magazine form Knife arm type Knife arm type Knife arm type Knife arm type
Machinery Machine weight(kg) 9000 12000 13000 13500
Mechanical dimensions(mm) 3480×2600×2900 4250×2600×3250 4600×2600*3250 4800×2800×3300
