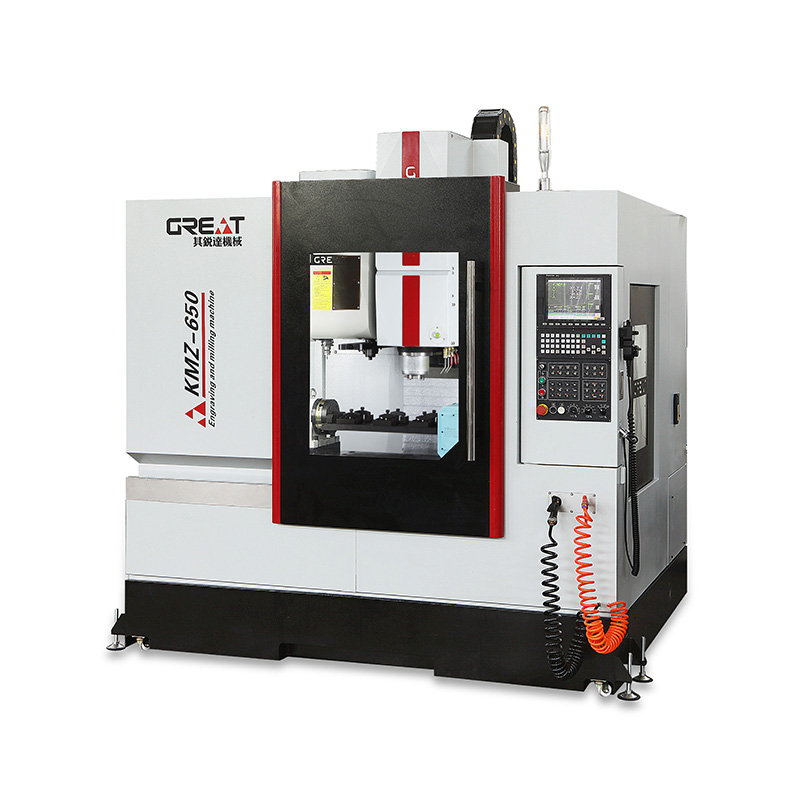

High Speed Drilling and Tapping Machine

High Speed Drilling and Tapping Machine

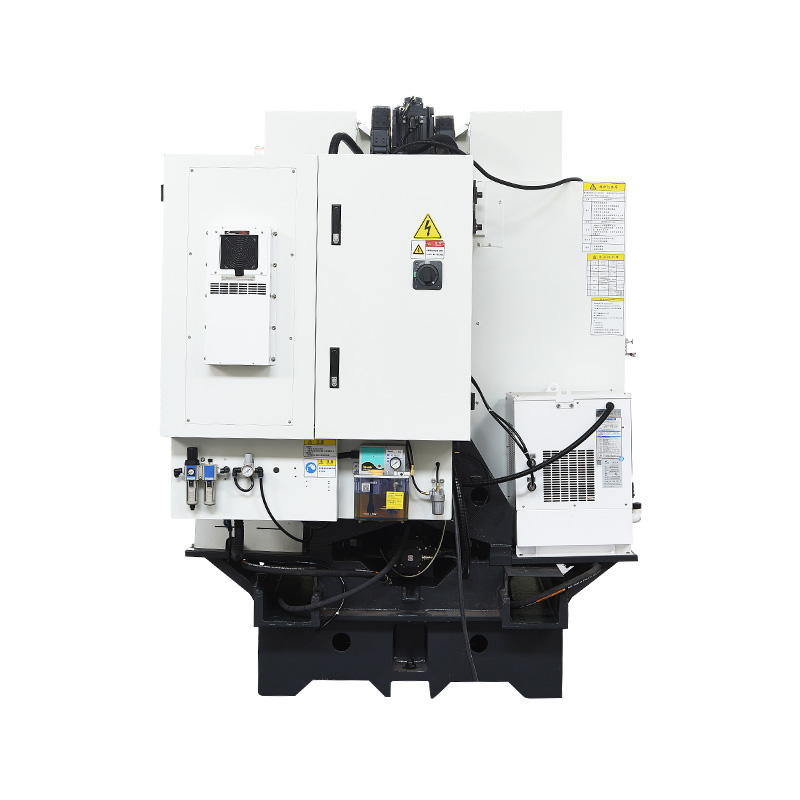

Machine Characteristics:
  • Unique large-span design of the base and column.
  • Directly linked high-speed spindle for responsive, 5000+ rpm tapping.
  • Rapid 3-axis displacement of 48m/min significantly reduces machining time.
  • Fast and stable tool change with flip type servo tool changer, reducing non-machining time.
  • Chip flushing system with optimum chip removal angle and large chip flow.
  • Ideal for drilling small diameter holes in addition to parts.
  • Reduced machining time and increased efficiency and profitability.
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
  • High Speed Drilling and Tapping Machine
inquiry

Configuration

Standard Features
/Japan Mitsubishi CNC /15000rpm direct link spindle /BT30-16T flip type servo tool changer /Spindle oil temperature cooler /Cutting cooling system /Automatic lubrication system /Electronic handwheel /USB, CF card interface /Work light /Warning light /Air gun

Optional configuration
FANUC system /Tool bodies, tools, clamps /BT30-21T flip-up tool changer /Fourth (fifth) axis CNC turntable /Z-axis column heightening /Tool setting instrument /Stabilizer

Technical Parameters

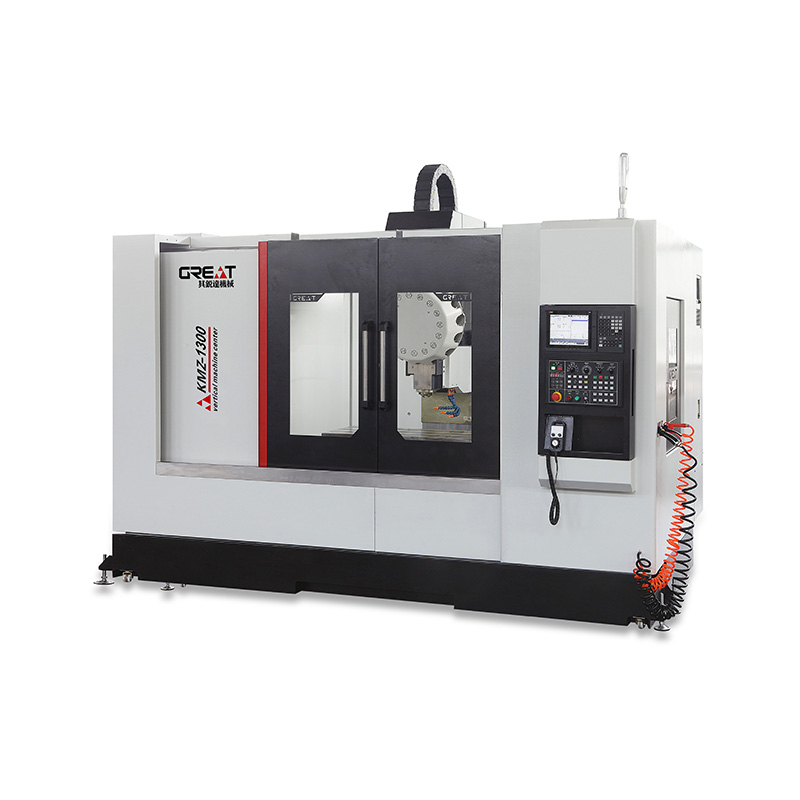

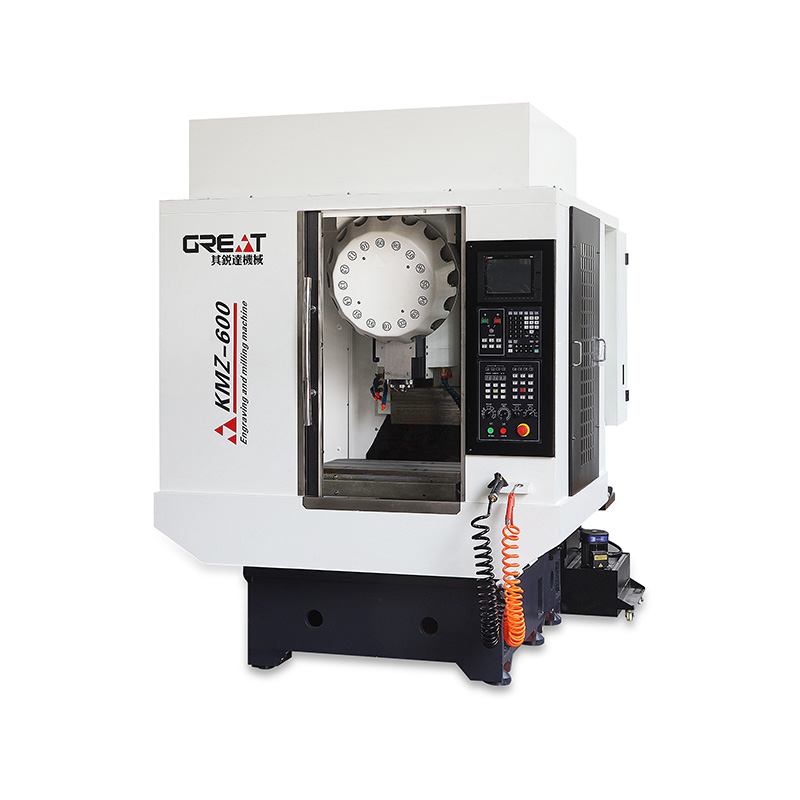

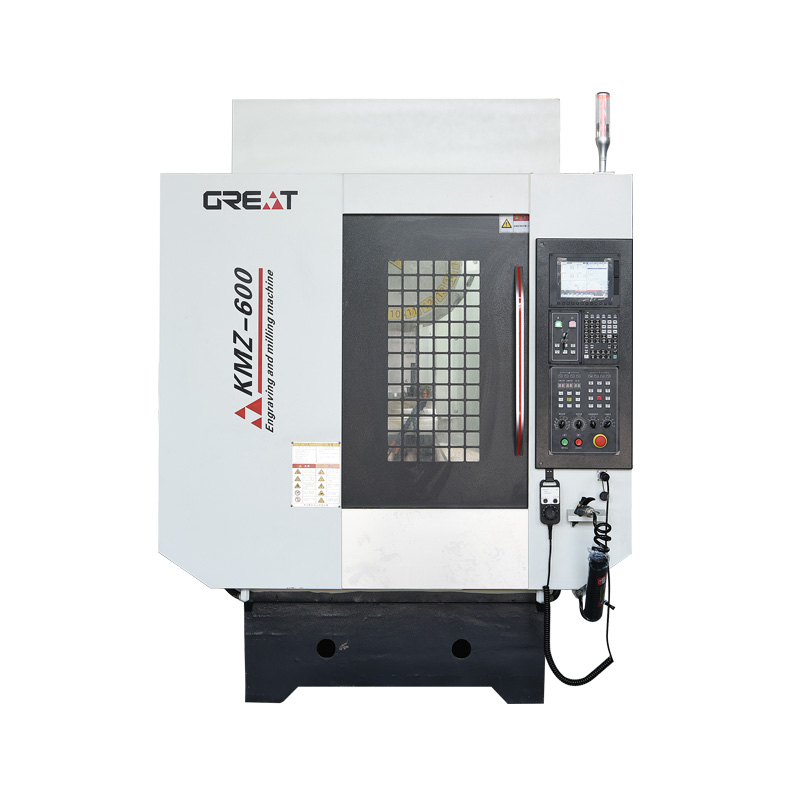

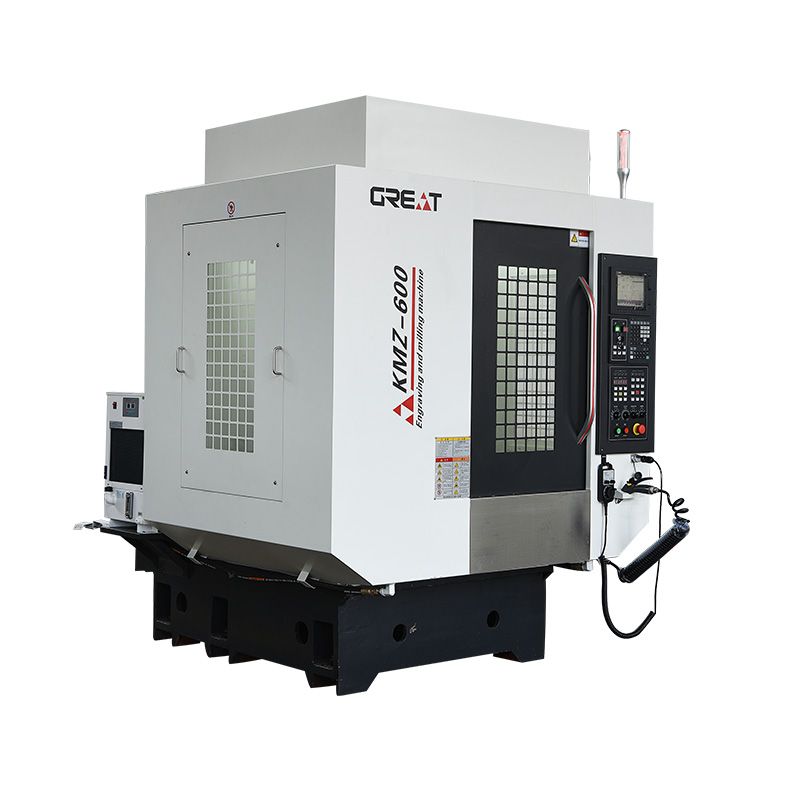

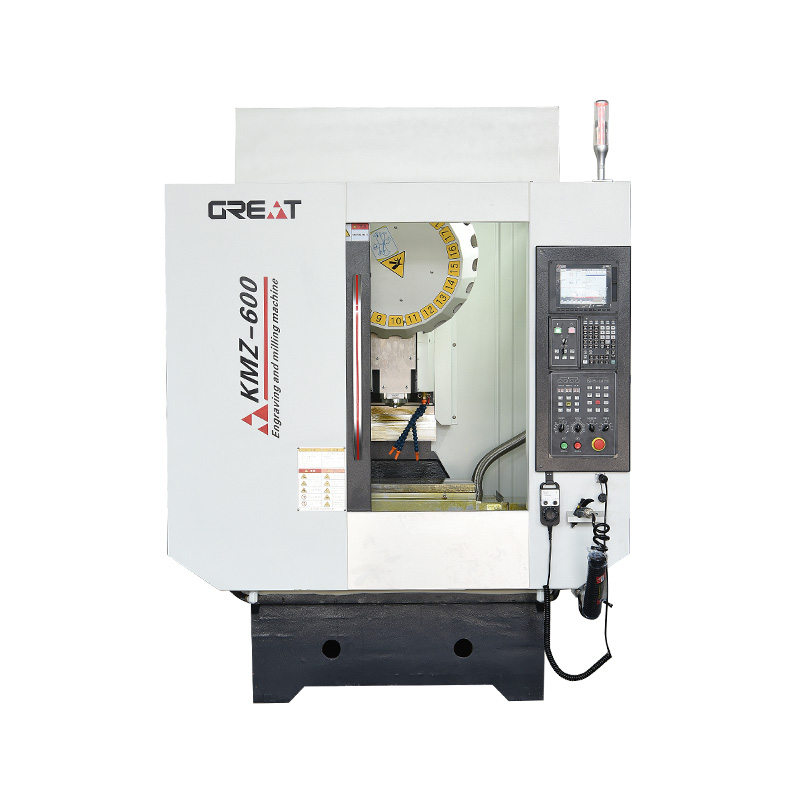

Projects KMZ-600 KMZ-700 KMZ-800 KMZ-1000
Itinerary X-axis travel(mm) 600 700 800 1000
Y-axis travel(mm) 450 450 500 500
Z-axis travel(mm) 330 330 450 450
Workbench Worktop area(mm) 700×420 800×420 900×500 1100×500
Max. working table load(kg) 250 250 400 450
T-slot dimensions 3-14*125 3-14*125 3-18*125 3-18*125
Distance Distance from spindle end face to table(mm) 150-480 150-480 120-570 120-570
Distance from spindle centre to column guide(mm) 464 464 550 550
Main shaft Spindle bore taper BT30 BT30 BT30 BT30
Spindle speed(rpm/min) 15000(or:20000) 15000(or:20000) 15000(or: 20000) 15000(or: 20000)
Spindle power(kw) 3.7/5.5 3.7/5.5 5.5/7.5 5.5/7.5
Feeds XYZ three-axis rapid feed(m/min) 48/48/48 48/48/48 48/48/48 36/36/36
Three-axis cutting feeds(mm/min) 1-10,000 1-10,000 1-10,000 1-10,000
Knife Depot Tool magazine capacity 21 21 21 21
Heaviest tool weight(kg) 3 3 3 3
Maximum tool length(mm) 200 200 200 200
Tool magazine form Flip-up tool changer Flip-up tool changer Flip-up tool changer Flip-up tool changer
Machinery Machine weight(kg) 3000 3100 4200 4800
Mechanical dimensions(mm) 1860*2520*2380 1900*2520*2380 2060*2790*2440 3070*2430*2630

Projects KMZ-1300 KMZ-1600 KMZ-2000
Itinerary X-axis travel(mm) 1300 1650 2050
Y-axis travel(mm) 500 650 500
Z-axis travel(mm) 450 450 450
Workbench Worktop area(mm) 1300×500 1700×600 2000×500
Max. working table load(kg) 500 800 500
T-slot dimensions 3-18*125 4-18*140 3-18*25
Distance Distance from spindle end face to table(mm) 120-570 120-620 90-570
Distance from spindle centre to column guide(mm) 550 66o 550
Main shaft Spindle bore taper BT30 BT30 BT30
Spindle speed(rpm/min) 15000(or:20000) 15000(or: 20000) 20000
Spindle power(kw) 5.5/7.5 5.5/7.5 5.5/7.5
Feeds XYZ three-axis rapid feed(m/min) 32/36/36 32/36/36 32/36/36
Three-axis cutting feeds(mmlmin) 1-10,000 1-10,000 1-10,000
Knife Depot Tool magazine capacity 21 21 21
Heaviest tool weight(kg) 3 3 3
Maximum tool length(mm) 200 200 200
Tool magazine form Flip-up tool changer Flip-up tool changer Flip-up tool changer
Machinery Machine weight(kg) 5800 7500 6500
Mechanical dimensions(mm) 3300*2550*2730 3900*2550*2730 4600*2550*2730

Typical application industries.
  • Automotive and motorcycle components - Digital communication products - Aerospace components - Pneumatic parts
  • Hydraulic components - Aluminium and magnesium alloy products - Precision machinery components

Related products

Send Us a Message​

Ningbo GREAT Machine Tool Co., Ltd.

ABOUT

Ningbo GREAT Machine Tool Co., Ltd.


Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation. We are China High Speed Tapping Machine manufacturers and custom High Speed Drilling Machine factory.Our products are suitable for producing auto accessories, textile Accessories, digital products, military products, medical instruments, mold manufacturing, aluminum casting, and so on. We import inspection equipment from Italy and Britain and conduct complete inspections for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. to ensure the high precise and stable quality of our products. In addition, we provide after-sales service. Our professional teams maintain close contact with customers and provide technical support at time if necessary. We adhere to the Diamond quality concept and keep working on it to provide products for each customer.

Professional

The sales team keeps in close contact with customers and provides technical support in time.

Quality & Cost

We have our own processing workshop. So we can provide favorable prices and high-quality products directly.

Contact us

Certificate Of Honor

News

Industry knowledge extension of this product

High-Speed Drilling and Tapping Machine: Enhancing Efficiency and Precision in Manufacturing
In the ever-evolving landscape of manufacturing, the demand for speed, precision, and efficiency continues to drive the development of cutting-edge machinery. The High-Speed Drilling and Tapping Machine stands at the forefront of this technological wave, boasting a range of features that redefine the possibilities of machining. With a unique large-span design of the base and column, a directly linked high-speed spindle, and a rapid 3-axis displacement system, this machine sets new standards for performance, reducing machining time and increasing overall efficiency.
At the heart of the High-Speed Drilling and Tapping Machine's exceptional performance lies its unique large-span design. The meticulously engineered base and column structure provide unparalleled stability, eliminating vibrations and ensuring consistent precision even at high speeds. This robust foundation forms the backbone for the machine's capabilities, enabling it to handle intricate drilling and tapping tasks with remarkable accuracy.
A defining feature of this machine is its directly linked high-speed spindle, capable of reaching speeds exceeding 5000 rpm. This attribute transforms the way tapping operations are performed. The spindle's rapid responsiveness and high rotational speed enable seamless and efficient tapping, even in the most challenging materials. This translates to reduced cycle times and increased output without compromising the quality of the end product.
Swift Displacement and Tool Changes for Optimal Time Utilization
Efficiency gains are further emphasized through the machine's rapid 3-axis displacement system, achieving speeds of up to 48m/min. This impressive capability minimizes non-machining time, optimizing overall production timelines. Complementing this agility is the flip-type servo tool changer, ensuring fast and stable tool changes. By seamlessly transitioning between tools, the machine maximizes uptime, making every second count towards productive machining.
Maintaining a clean and productive workspace is paramount in any machining environment. The High-Speed Drilling and Tapping Machine addresses this concern through its advanced chip flushing system. The system's carefully calculated chip removal angle and generous chip flow prevent chip buildup, allowing for uninterrupted operations. This not only ensures consistent performance but also extends the lifespan of the cutting tools, resulting in long-term cost savings.
While excelling in drilling and tapping operations, this machine goes beyond its primary functions. Its adaptability allows for drilling small diameter holes with precision, catering to a wider range of parts and products. This versatility underscores its value as a multifaceted tool within a manufacturing setup, contributing to overall process optimization.
Optional Configurations for Tailored Solutions
Recognizing the diversity of manufacturing requirements, the High-Speed Drilling and Tapping Machine offers a range of optional configurations. These additions include compatibility with FANUC systems, expanded tool storage, and even a fourth or fifth-axis CNC turntable for advanced machining operations. This adaptability ensures that the machine can be tailored to specific needs, making it a versatile investment for various industries.
In a world where efficiency is a paramount concern, the High-Speed Drilling and Tapping Machine emerges as a game-changing solution. With its distinctive design, rapid spindle, agile displacement, and efficient tool changes, it redefines what is possible in machining operations. By reducing machining time, increasing productivity, and maintaining precision, this machine paves the way for a new era of manufacturing excellence. Whether drilling small diameter holes or tackling intricate tapping tasks, this machine stands as a testament to the ongoing pursuit of innovation and efficiency in modern manufacturing.
