Moving Column Machining Center

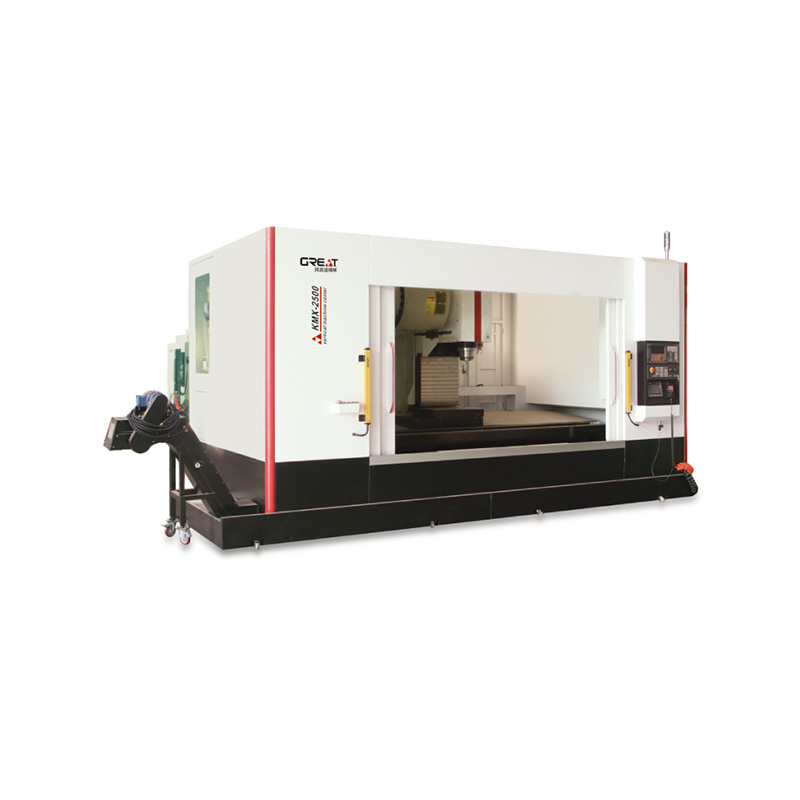

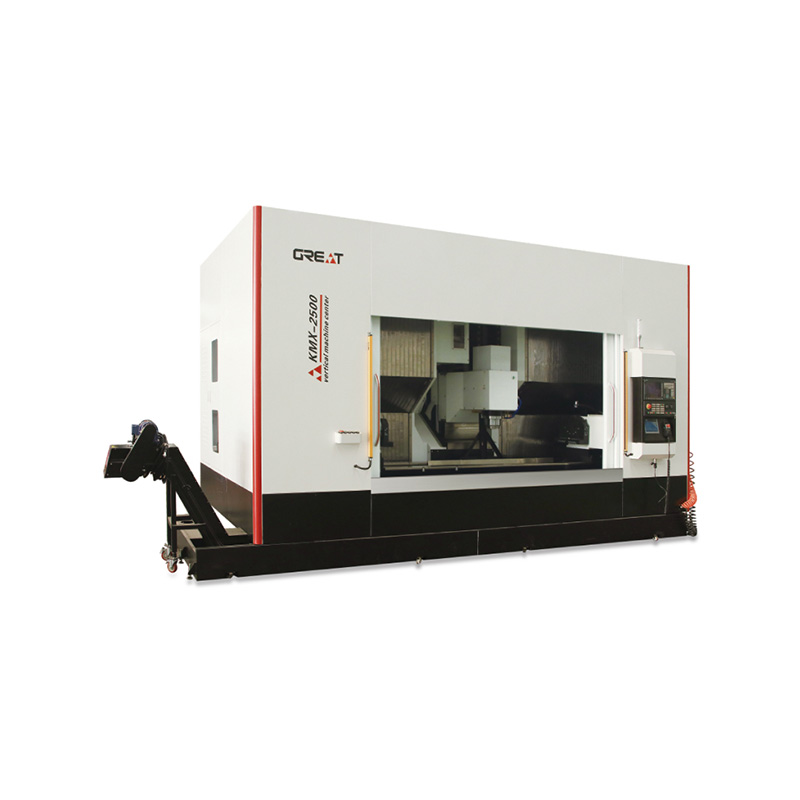

Moving Column Machining Center

Machine Characteristics:
  • This series of machines is an automatic machining centre that integrates milling, drilling, tapping and chamfering, and is suitable for metal processing of steel, copper and aluminium materials of various lengths and long parts.
  • The machine tool is designed with a one-piece base and full dynamic column structure. The overall layout of the machine tool is reasonable, compact and covers a small area. The rigidity and anti-vibration properties have been effectively improved.
  • The machine's spindle box adopts a high-speed direct mechanical spindle, which is suitable for high-speed and high rigidity cutting, drilling, milling and tapping processing.
  • The tool magazine is an arm type disc magazine for quick tool changes and has a 24-station tool magazine.
  • The machine is protected by an armour type shield, which effectively protects the screws, rails and racks.
  • Moving Column Machining Center
  • Moving Column Machining Center
inquiry

Configuration

Standard configuration
Taiwan New Generation System /Semi-protective sheet metal /Three-axis linear rail /Three-axis guards /Cutting coolant system /Automatic centralized lubrication system /Electronic handwheel /USB, CF card interface /Three-colour warning light /Tool and tool box /Leveling bolts and foundation blocks /BT40-24T tool arm type tool magazine /Spindle oil temperature cooler /Chain chip removal

Optional configuration
Fanuc/Mitsubishi systems /Tool bodies, tools, fixtures /4th (5) axis CNC turntable

Technical Parameters

Projects KMX-2000 KMX-2500 KMX-2500/2 KMX-4500
Itinerary X-axis travel(mm) 2000 2500 1300 4500
Y-axis travel(mm) 500 500 500 500
Z-axis travel(mm) 500 500 500 500
Workbench Worktop area(mm) 2700×500 3200×500 3200*500 5000×500
Max. working table load(kg) 3000 3000 3000 3000
Distance Distance from spindle end face to table(mm) 350-850 350-850 350-850 350-850
Distance from spindle centre to column guide(mm) 613 613 613 613
Main shaft Spindle bore taper BT40(or:HSK 63A)
Spindle speed(rpm/min) 12000(or:15000 20000 electric spindles)
Spindle power(kw) 9 or 11 (Siemens), 11/15 (Fanuc) (or:20000 motor spindles)
Feeds Rapid feed in three axes XYZ(m/min) 36/36/36 30/36/36 36/36/36 36/36/36
Knife Depot Tool magazine capacity 24 24 24 24
Heaviest tool weight(kg) 8 8 8 8

Projects KMX-2000 KMX-2500 KMX-2500/2 KMX-4500
Itinerary X-axis travel(mm) 2000 2500 1300 4500
Y-axis travel(mm) 500 500 500 500
Z-axis travel(mm) 500 500 500 500
Workbench Worktop area(mm) 2700×500 3200×500 3200*500 5000×500
Max. working table load(kg) 3000 3000 3000 3000
Distance Distance from spindle end face to table(mm) 350-850 350-850 350-850 350-850
Distance from spindle centre to column guide(mm) 613 613 613 613
Main shaft Spindle bore taper BT40(or:HSK 63A)
Spindle speed(rpm/min) 12000(or:15000 20000 electric spindles)
Spindle power(kw) 9 or 11 (Siemens), 11/15 (Fanuc) (or:20000 motor spindles)
Feeds Rapid feed in three axes XYZ(m/min) 36/36/36 30/36/36 36/36/36 36/36/36
Knife Depot Tool magazine capacity 24 24 24 24
Heaviest tool weight(kg) 8 8 8 8

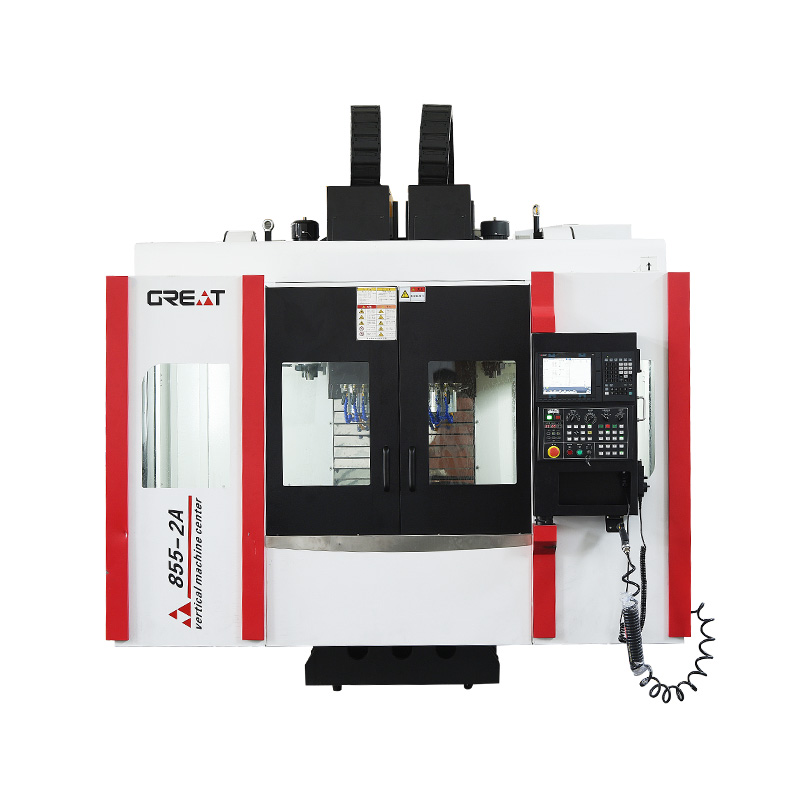

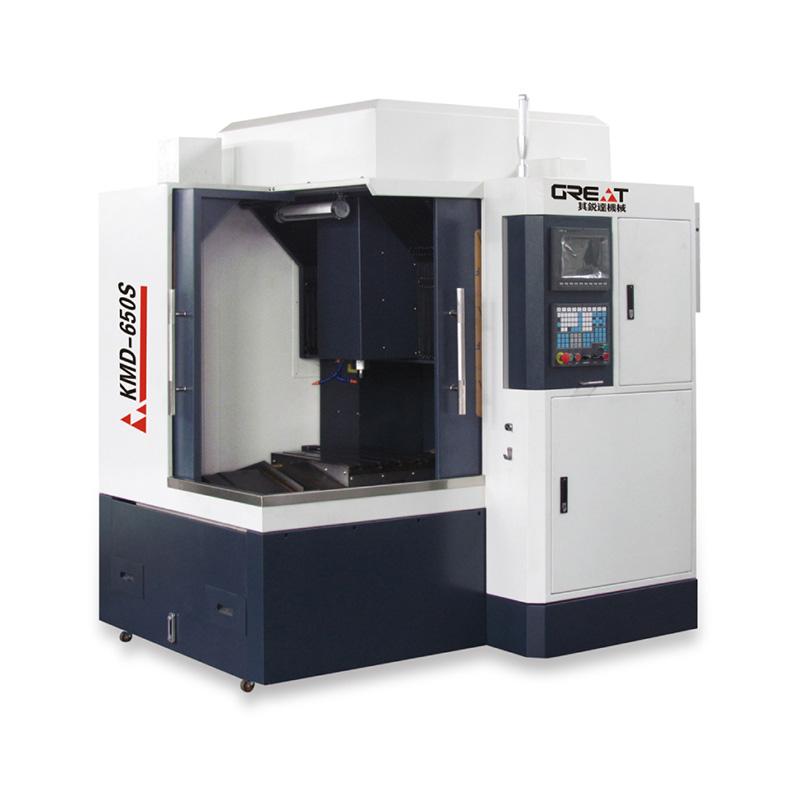

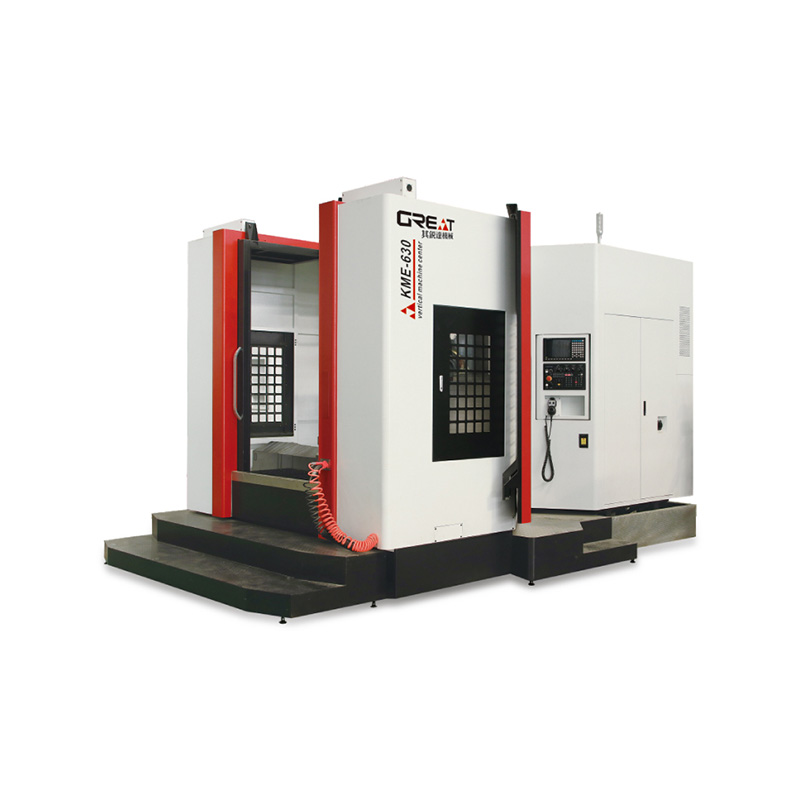

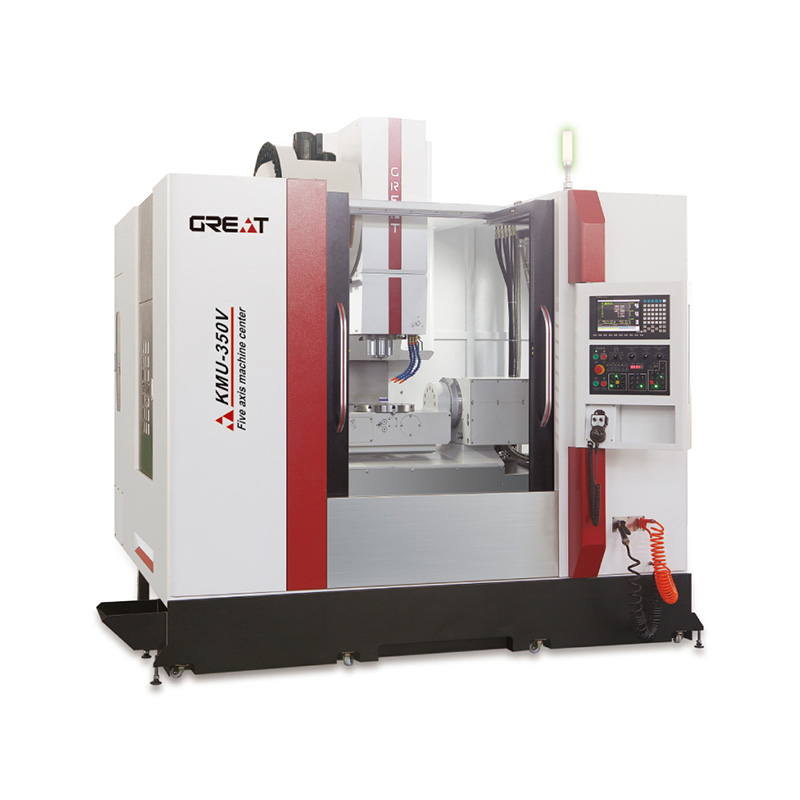

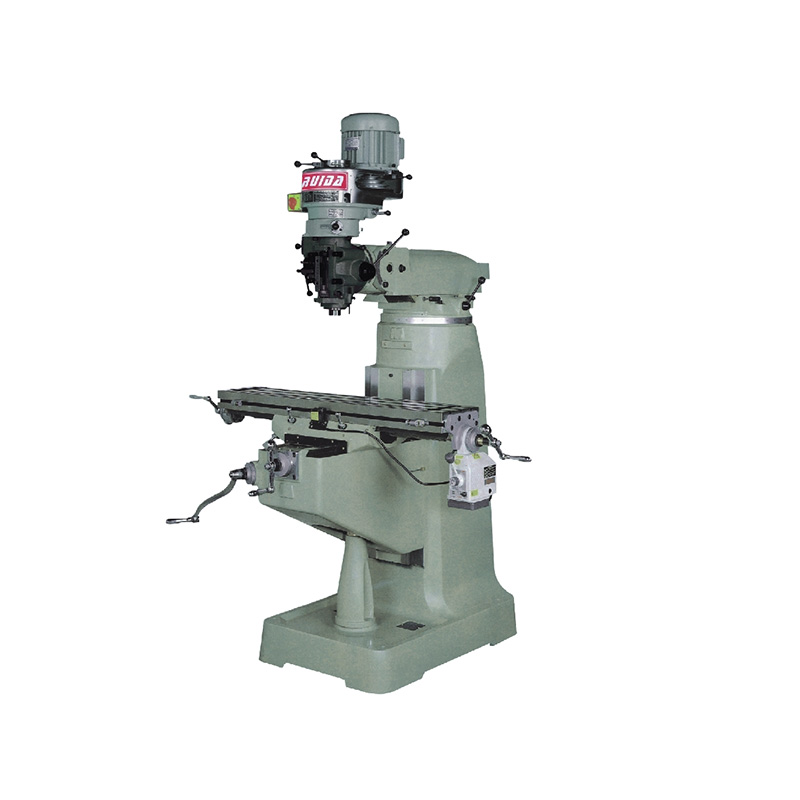

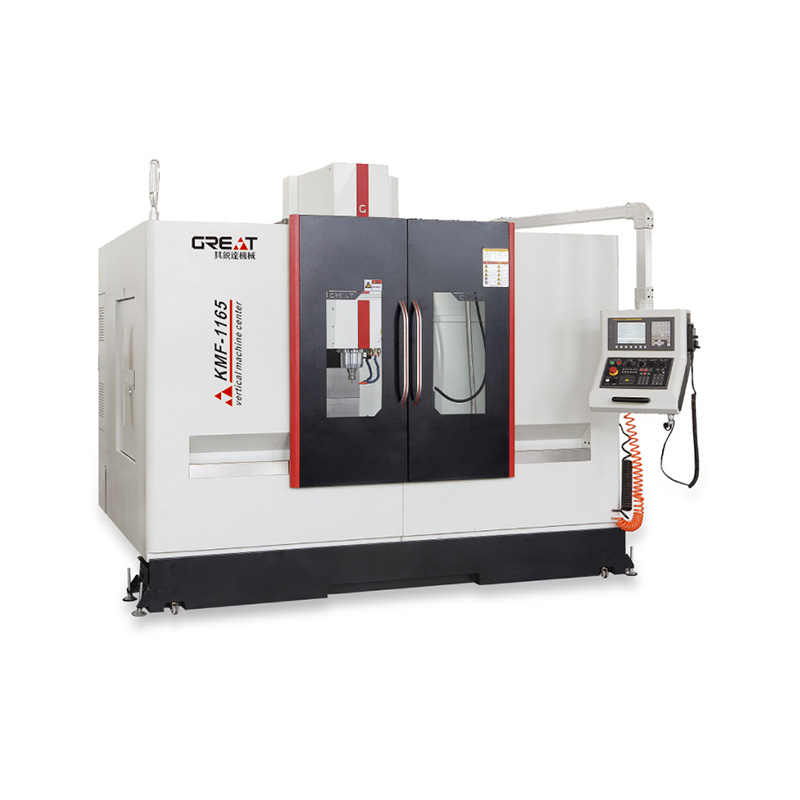

Related products

Send Us a Message​

Ningbo GREAT Machine Tool Co., Ltd.

ABOUT

Ningbo GREAT Machine Tool Co., Ltd.


Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation. We are China Moving Column Machining Center manufacturers and custom Moving Column Machining Center factory.Our products are suitable for producing auto accessories, textile Accessories, digital products, military products, medical instruments, mold manufacturing, aluminum casting, and so on. We import inspection equipment from Italy and Britain and conduct complete inspections for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. to ensure the high precise and stable quality of our products. In addition, we provide after-sales service. Our professional teams maintain close contact with customers and provide technical support at time if necessary. We adhere to the Diamond quality concept and keep working on it to provide products for each customer.

Professional

The sales team keeps in close contact with customers and provides technical support in time.

Quality & Cost

We have our own processing workshop. So we can provide favorable prices and high-quality products directly.

Contact us

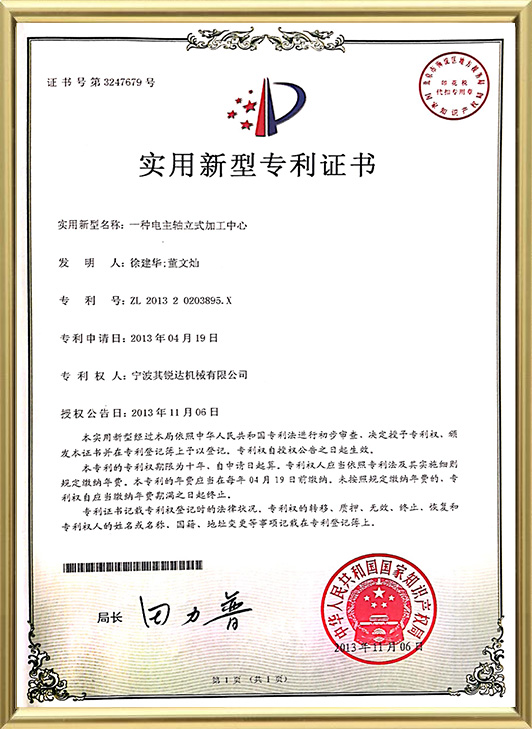

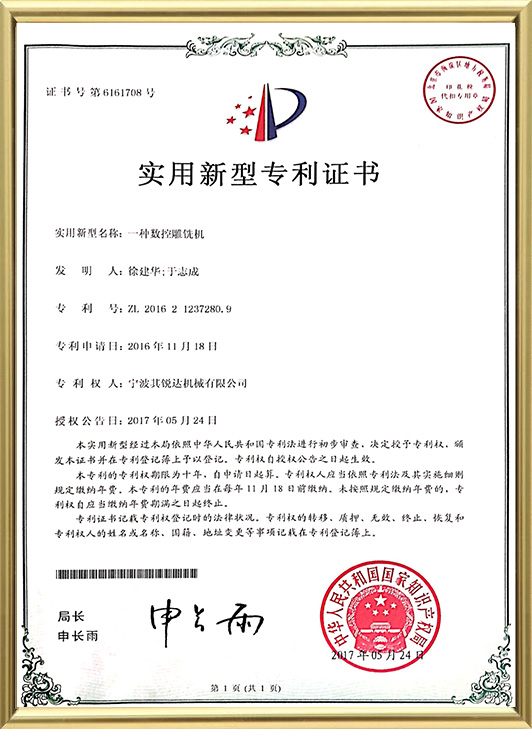

Certificate Of Honor

News

Industry knowledge extension of this product

Moving Column Machining Center: Enhancing Precision and Efficiency
This state-of-the-art machining center comes with a standard configuration that combines cutting-edge features to deliver exceptional performance, precision, and efficiency. Whether you're a seasoned industrial player or a burgeoning workshop, this machining center is engineered to elevate your machining processes to new heights.
Advanced Control and Safety Features:
At the core of the Moving Column Machining Center lies the Taiwan New Generation System, a testament to the fusion of traditional craftsmanship and modern technological advancements. This system serves as the central nervous system of the machine, orchestrating its intricate movements with unparalleled accuracy. Complementing this is the semi-protective sheet metal design, offering a shield against debris and enhancing workplace safety.
The integration of a three-axis linear rail system further cements the machine's reputation for precision. This rail system ensures smooth and stable movement in three dimensions, eliminating even the slightest deviations during machining operations. To ensure operator safety and prevent mishaps, the machine is equipped with three-axis guards. These guards not only shield the operator from potential hazards but also contribute to the overall aesthetic of the machine, with a design that marries form and function seamlessly.
Efficiency-Driven Auxiliary Systems
Efficiency is at the heart of the Moving Column Machining Center's design, and this is evident in the array of auxiliary systems that come as standard. The cutting coolant system is a crucial component, effectively dissipating heat generated during machining, thereby extending tool life and maintaining the integrity of the workpiece. Moreover, the automatic centralized lubrication system guarantees that every critical moving part is consistently lubricated, minimizing wear and tear and maximizing the machine's lifespan.
For enhanced control and maneuverability, the machine features an electronic handwheel, allowing for fine-tuned adjustments during setup and operation. The inclusion of USB and CF card interfaces not only facilitates convenient program transfers but also ensures seamless communication with external devices, bringing digital convenience to the heart of the manufacturing process. Additionally, the three-color warning light system provides real-time status indications, allowing operators to monitor the machine's operation at a glance.
Optional Configurations for Tailored Excellence
The Moving Column Machining Center's standard configuration sets a high bar for performance, but for those seeking to push the boundaries even further, optional configurations are available. Among the notable choices are the renowned Fanuc and Mitsubishi systems. These advanced control systems offer unparalleled precision, customization, and compatibility, catering to the diverse needs of manufacturers across industries.
To equip operators with an extensive arsenal of tools, the optional configuration includes tool bodies, tools, and fixtures. This empowers manufacturers to tackle an array of projects without compromise, all while maintaining the highest levels of precision. For those exploring complex multi-axis machining, the inclusion of a 4th or 5th axis CNC turntable offers limitless possibilities in terms of geometric intricacy and design complexity.
The Moving Column Machining Center, with its standard and optional configurations, represents a paradigm shift in machining technology. It seamlessly integrates cutting-edge control systems, safety features, and auxiliary systems to deliver unparalleled precision, efficiency, and versatility. Whether you're a small workshop or an industrial powerhouse, this machining center stands ready to redefine your approach to manufacturing, one precisely executed cut at a time.
