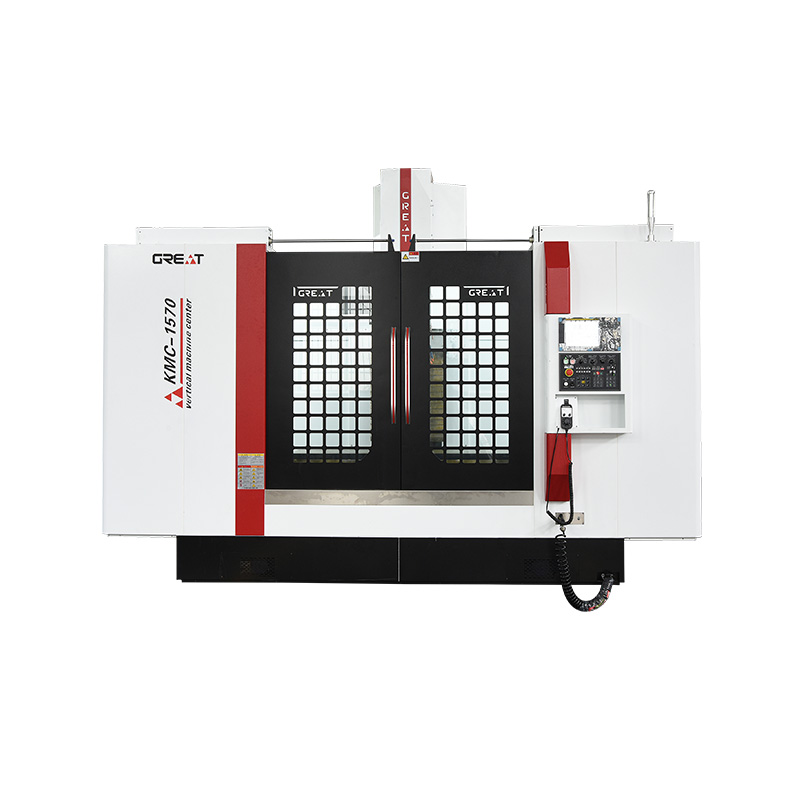

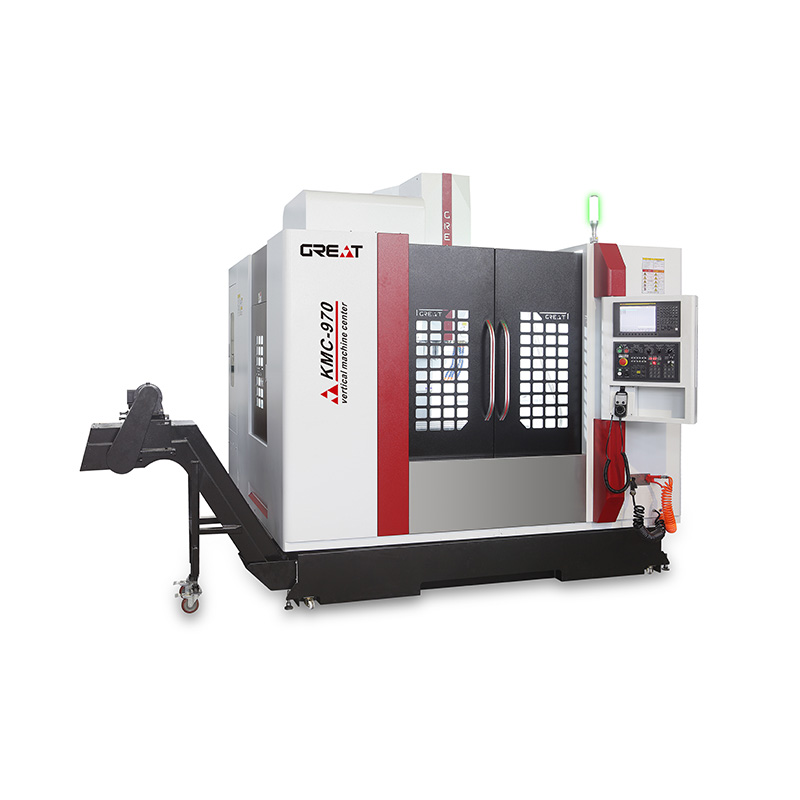

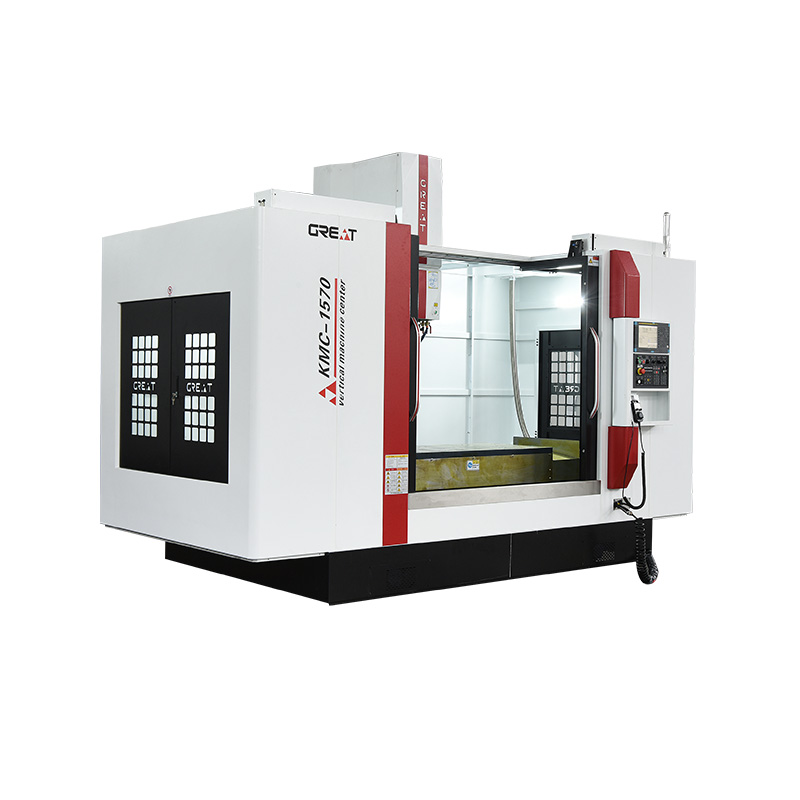

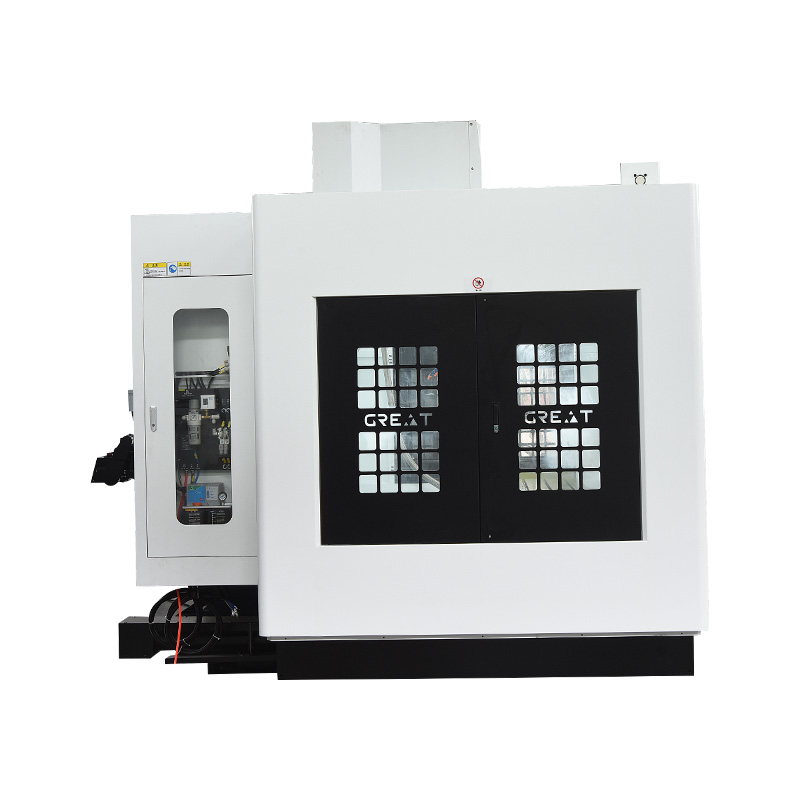

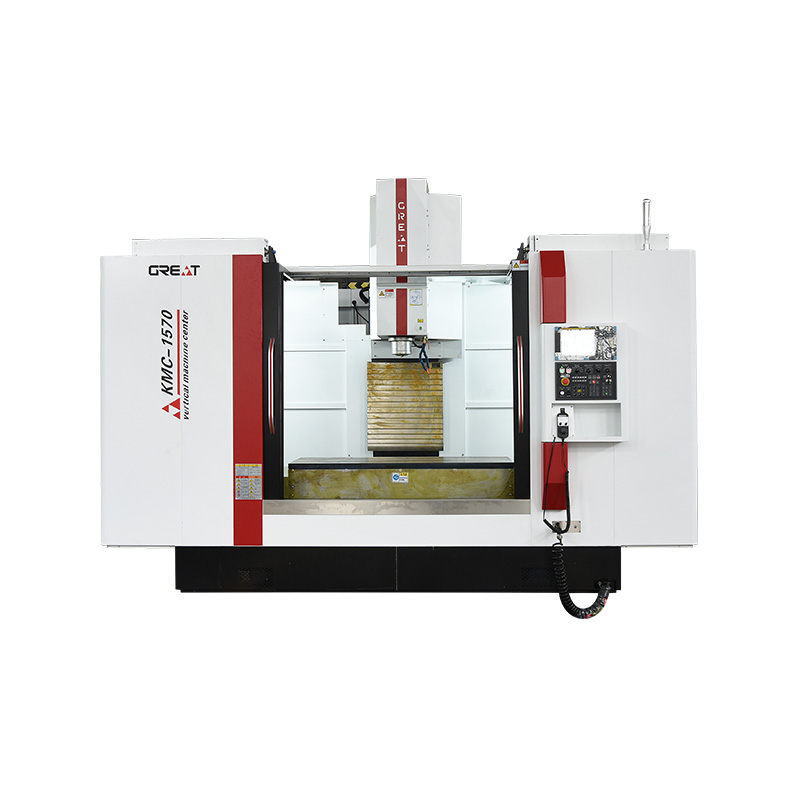

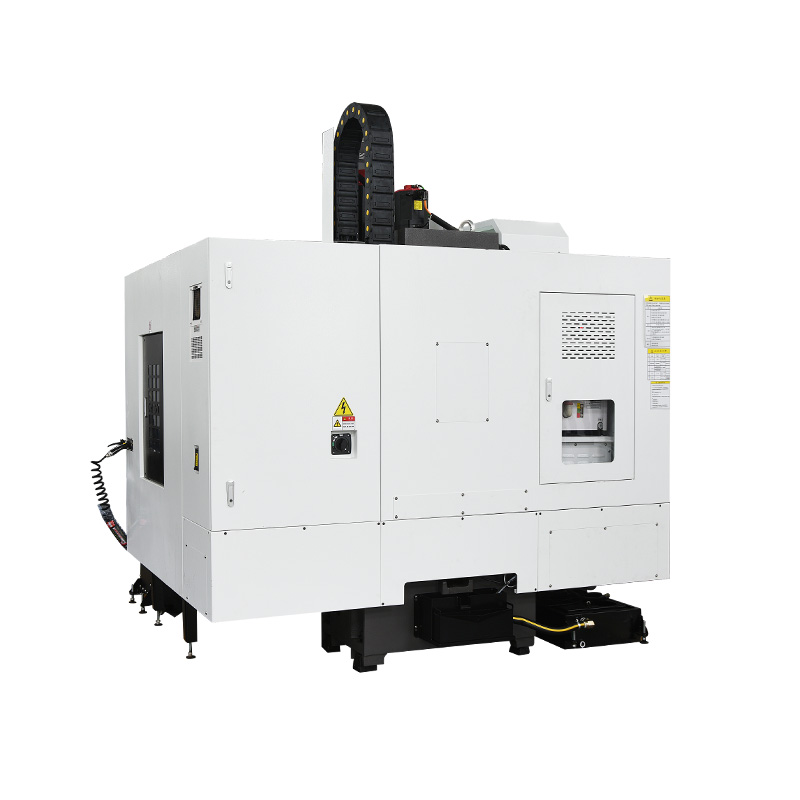

Vertical Machining Center/Three-track

Vertical Machining Center/Three-track

Machine Characteristics:
  • High-grade Meehaner castings with reinforced internal bars, all tempered for high stability and non-deformation to ensure quality.
  • Imported linear guide rails are used to provide high speed and smooth movement for efficient machining of products.
  • Three-axis guide rails adopt a fully enclosed stainless steel guard, with good chip removal and protection performance.
  • High-power servo motors are used to drive the feed, with a high load capacity.
  • Dust-proof electrical box, electrical components are imported brands, good stability, good dust-proof effect.
  • The wire holes are waterproof, effectively preventing oil and gas from entering the box, ensuring the service life of electrical. components and the reliability of performance.
  • Each machine is subject to laser and circular inspection in accordance with international standards to ensure machine accuracy.
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
  • Vertical Machining Center/Three-track
inquiry

Configuration

Technical Parameters

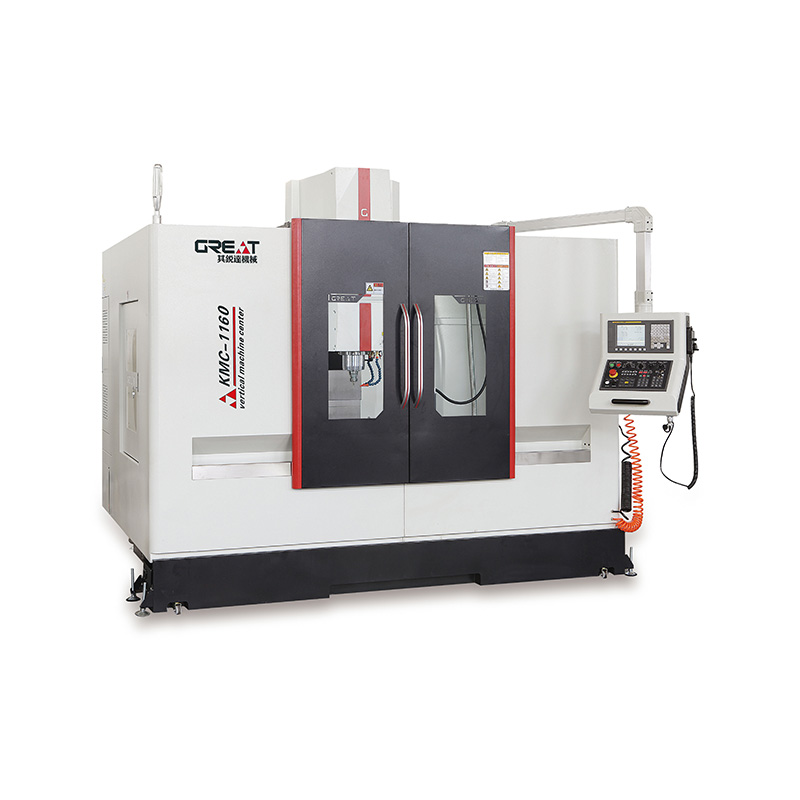

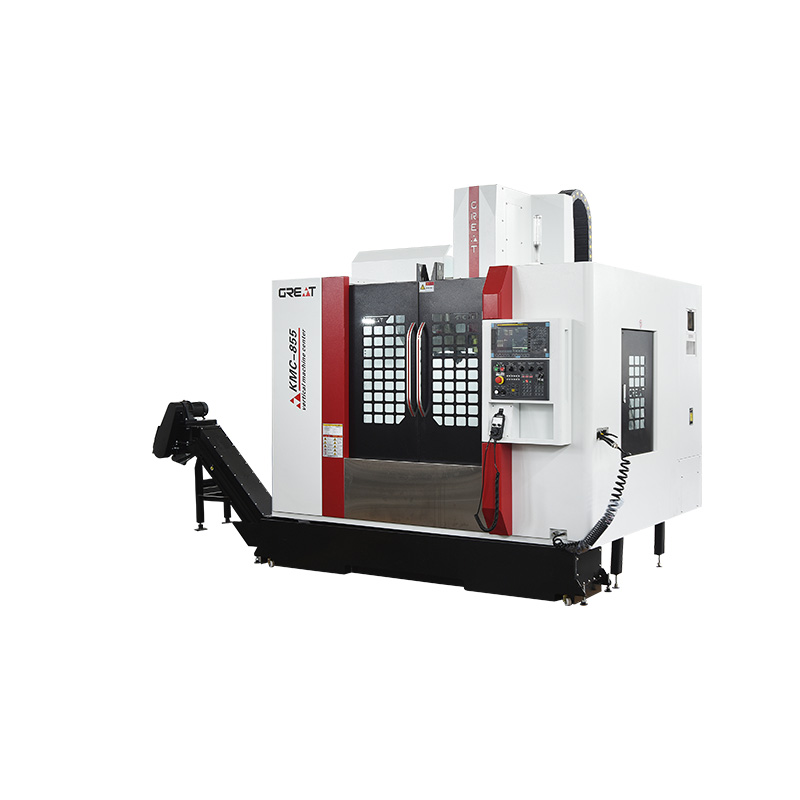

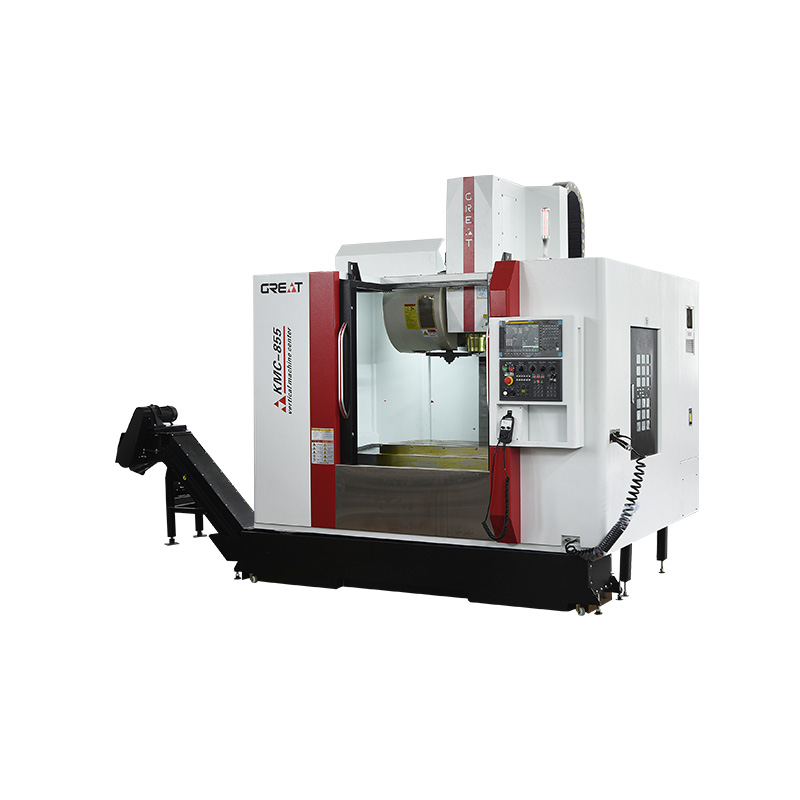

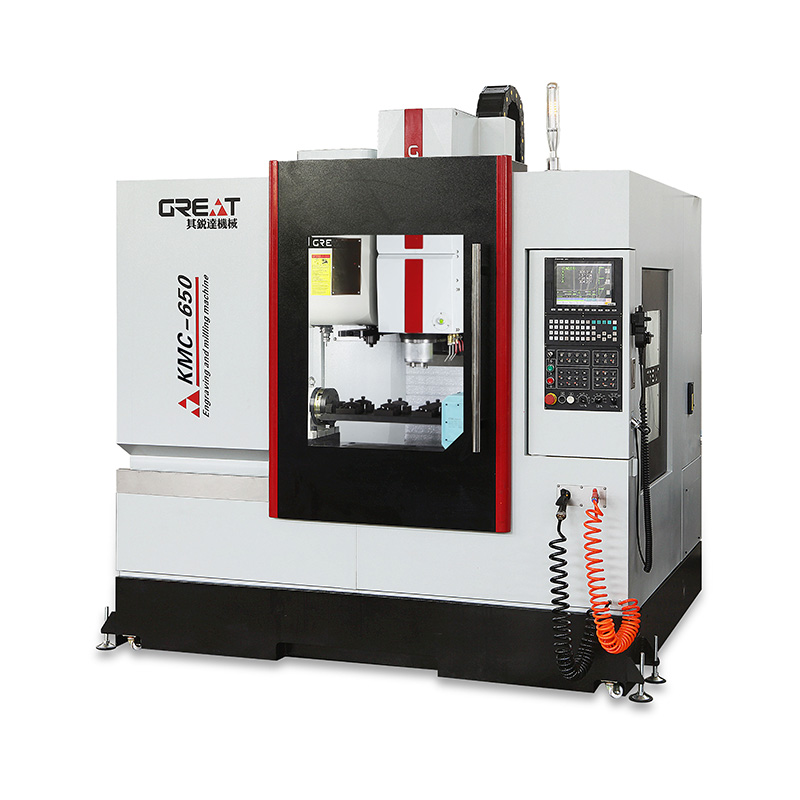

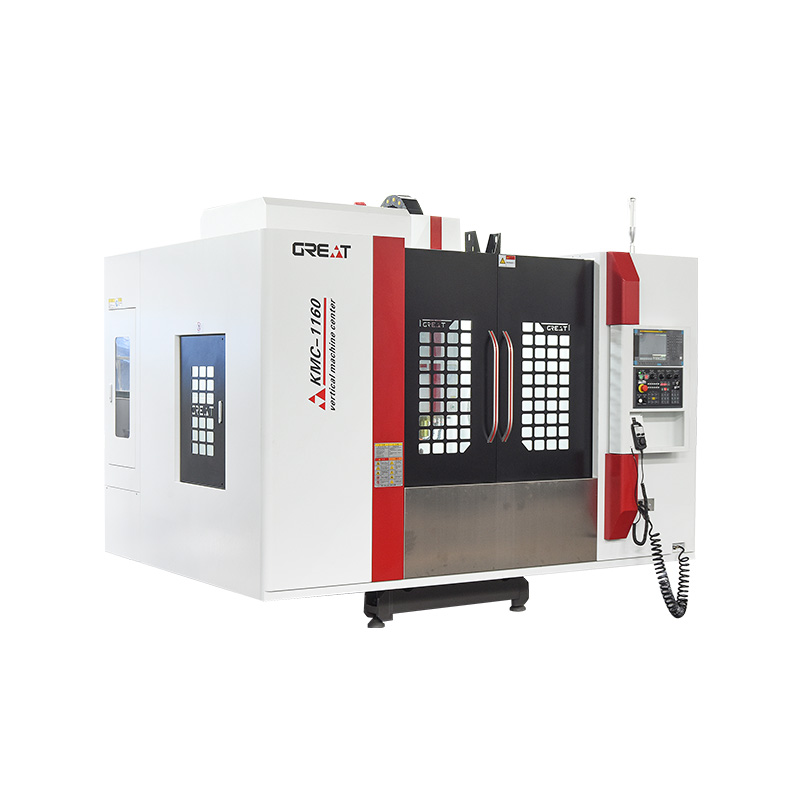

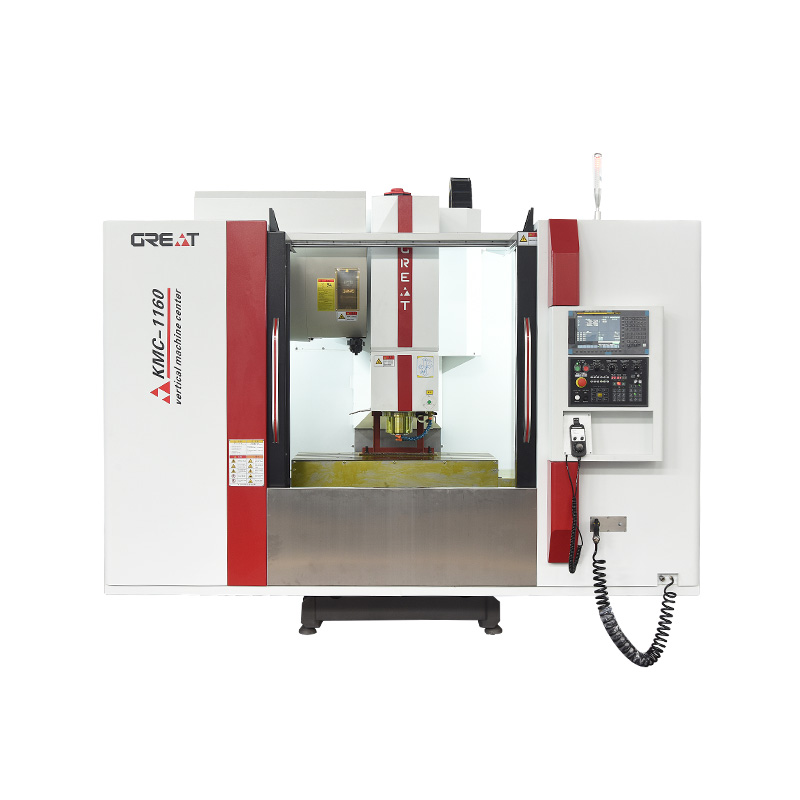

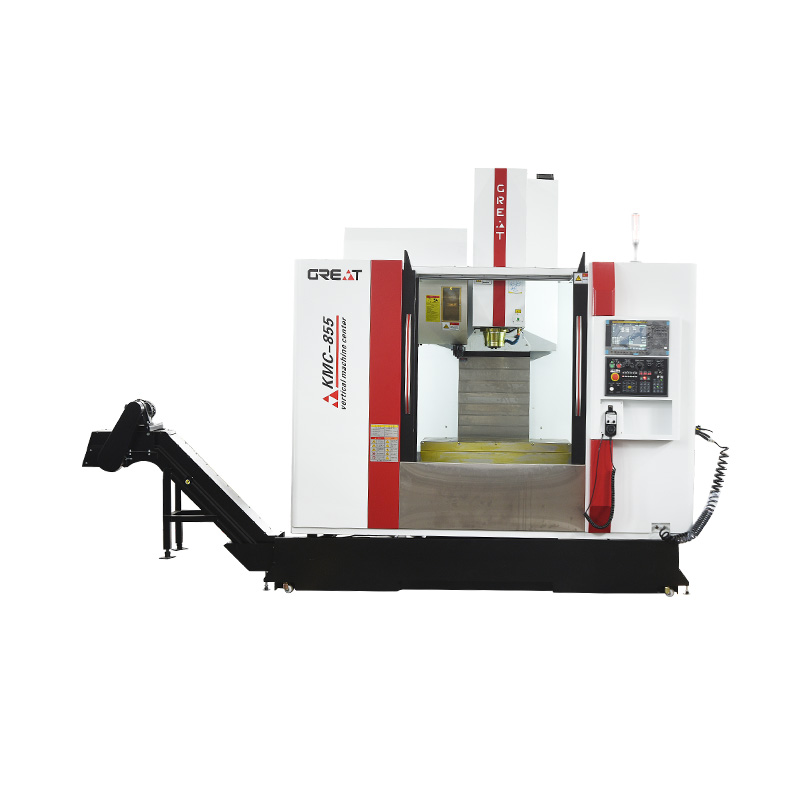

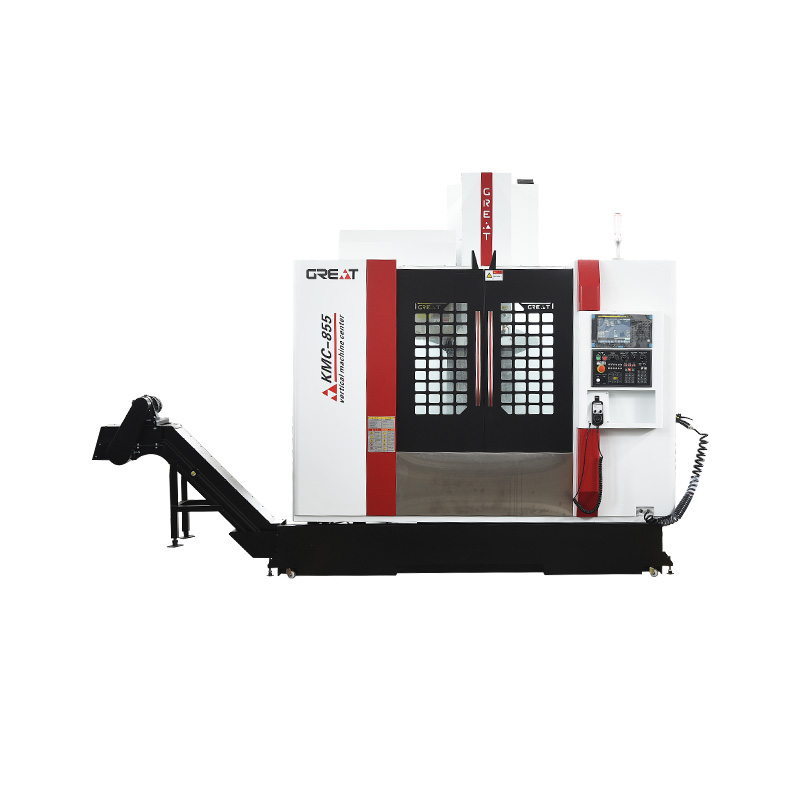

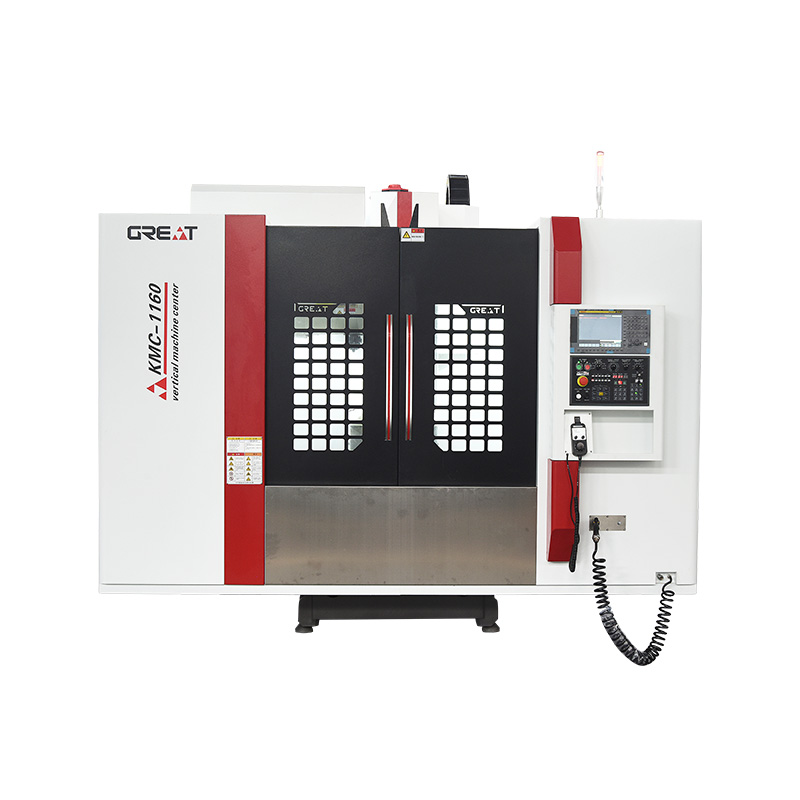

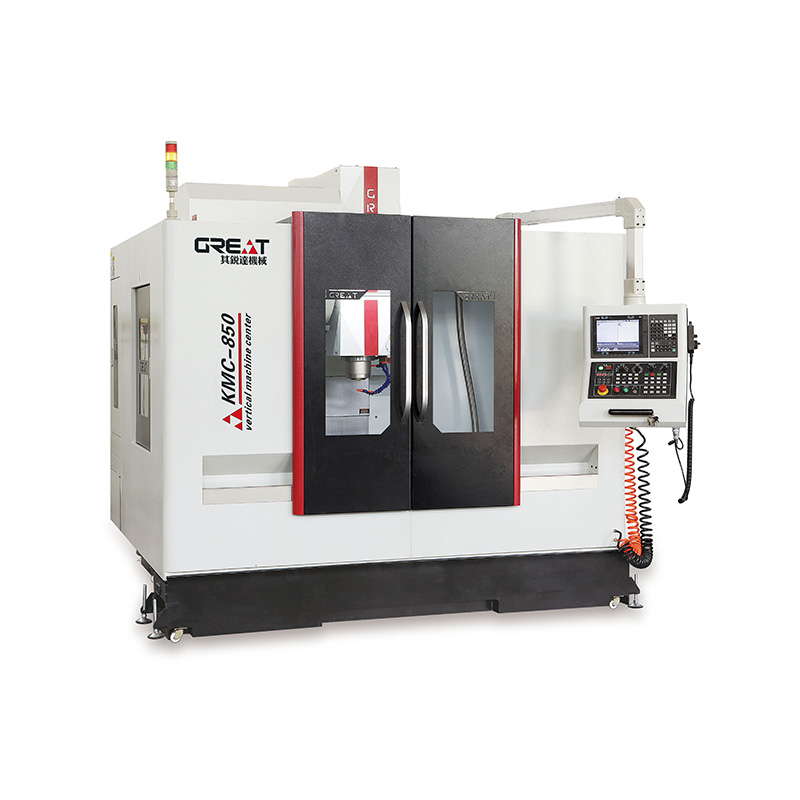

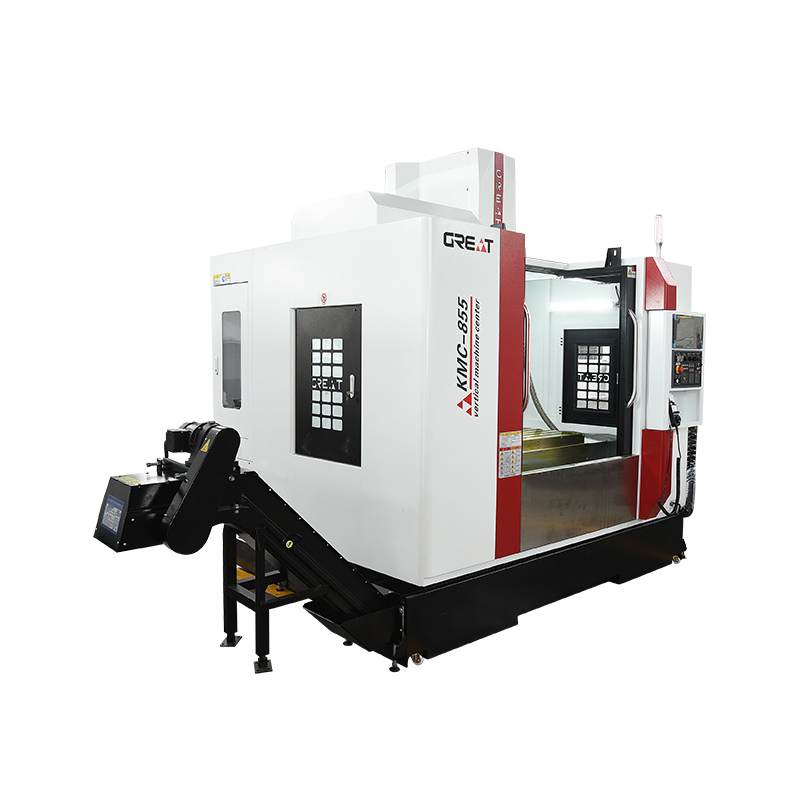

Projects KMC-650 KMC-850 KMC-855 KMC-857 KMC-1160
Itinerary X-axis travel(mm) 650 800 800 800 1100
Y-axis travel(mm) 400 500 550 550 600
Z-axis travel(mm) 500 550 550 700 600
Workbench Worktop area(mm) 800×400 1000×500 1000×550 1000×550 1200×600
Max. working table load(kg) 350 500 600 600 800
T-slot dimensions 3-18×125 5-18×80 5-18×90 5-18×90 5-18×100
Distance Distance from spindle end face to table(mm) 100-600 110-610 120-670 150-850 120-720
Distance from spindle centre to column guide(mm) 460 560 613 613 645
Main shaft Spindle bore taper BT40 BT40 BT40 BT40 BT40
Spindle speed(rpm/min) 10000(or:12000) 8000(or:12000) 8000(or12000) 8000(or:12000) 8000(or:12000)
Spindle power(kw) 5.5/7.5 5.5/7.5 7.5/11 7.5/11 7.5/11
Feeds XYZ three-axis rapid feed(m/min) 48/48/48 48/48/48 36/36/36 36/36/36 36/36/30
Three-axis cutting feeds(mm/min) 1-10000 1-10000 1-10000 1-10000 1-10000
Knife Depot Tool magazine capacity 20 24 24 24 24
Heaviest tool weight(kg) 8 8 8 8 8
Maximum tool length(mm) 300 300 300 300 300
Tool magazine form Knife arm type Knife arm type Knife arm type Knife arm type Knife arm type
Machinery Machine weight(kg) 4000 4800 5800 5900 6800
Mechanical dimensions(mm) 2400×2150×2560 2600×2250×2660 2650×2300×2700 2650×2300×2900 3000×2400×2900

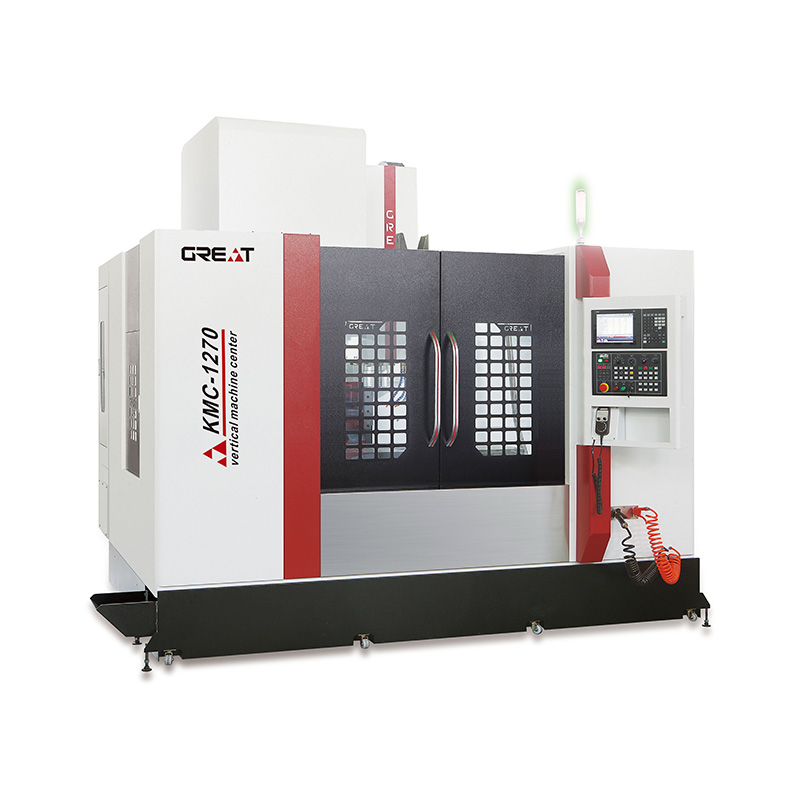

Projects KMC-1270 KMC-1370 KMC-1580 KMC-1685 KMC-1890
Itinerary X-axis travel(mm) 1250 1300 1500 1650 1800
Y-axis travel(mm) 700 700 800 850 900
Z-axis travel(mm) 700 700 700 850 900
Workbench Worktop area(mm) 1300×700 1400×700 1600×800 1700×850 2000×900
Max. working table load(kg) 900 1200 1600 1600 1800
T-slot dimensions 5-18×125 5-18×110 5-18×140 7-18×125 7-18×125
Distance Distance from spindle end face to table(mm) 140-840 140-840 150-950 120-970 95-995
Distance from spindle centre to column guide(mm) 740 760 850 990 990
Main shaft Spindle bore taper BT40 BT40(or:BT50) BT40(or:BT50) BT40(or:BT50) BT40(or:BT50)
Spindle speed(rpm/min) 8000(or:12000) 8000(or:12000) 8000(or:12000) 8000(or:12000) 8000(or:12000)
Spindle power(kw) 7.5/11 11/15 11/15 11/15(or:18.5/22) 11/15(or:18.5/22)
Feeds XYZ three-axis rapid feed(m/min) 36/36/30 24/24/20 24/24/20 24/24/18 24/24/18
Three-axis cutting feeds(mm/min) 1-10000 1-10000 1-10000 1-10000 1-10000
Knife Depot Tool magazine capacity 24 24 24 24 24
Heaviest tool weight(kg) 8 8 8 8 8
Maximum tool length(mm) 300 300 300 300 300
Tool magazine form Knife arm type Knife arm type Knife arm type Knife arm type Knife arm type
Machinery Machine weight(kg) 7200 9200 11200 12500 13000
Mechanical dimensions(mm) 3200×2400×2900 3450×2600×3150 3900×2600×3250 4600×2600×3450 4800×2800×3450

Related products

Send Us a Message​

Ningbo GREAT Machine Tool Co., Ltd.

ABOUT

Ningbo GREAT Machine Tool Co., Ltd.


Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation. We are China Three-track Vertical Machining Center manufacturers and custom Three-track Vertical Machining Center factory.Our products are suitable for producing auto accessories, textile Accessories, digital products, military products, medical instruments, mold manufacturing, aluminum casting, and so on. We import inspection equipment from Italy and Britain and conduct complete inspections for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. to ensure the high precise and stable quality of our products. In addition, we provide after-sales service. Our professional teams maintain close contact with customers and provide technical support at time if necessary. We adhere to the Diamond quality concept and keep working on it to provide products for each customer.

Professional

The sales team keeps in close contact with customers and provides technical support in time.

Quality & Cost

We have our own processing workshop. So we can provide favorable prices and high-quality products directly.

Contact us

Certificate Of Honor

News

Industry knowledge extension of this product

Vertical Machining Center: Precision and Efficiency Redefined for Manufacturing Excellence
In the realm of modern manufacturing, precision and efficiency are the cornerstones of success. The Vertical Machining Center stands as a pinnacle of technological advancement, marrying innovation and reliability to deliver unparalleled machining capabilities. With its meticulously engineered features, including high-grade Meehanite castings, imported linear guide rails, and high-power servo motors, this machine ensures top-tier performance for a range of applications.
At the core of the Vertical Machining Center's exceptional performance is its foundation - the high-grade Meehanite castings. These castings are not only chosen for their superior quality but are also fortified with reinforced internal bars. Tempered to resist deformation and to maintain high stability, these castings lay the groundwork for precision machining. The commitment to quality in construction ensures that the machine remains unwavering even under the most demanding conditions.
Total Enclosure: Enhanced Protection and Chip Removal
The machine's movement is a symphony of precision and smoothness, orchestrated by imported linear guide rails. These guide rails play a pivotal role in providing high-speed, frictionless movement, which translates to efficient machining processes. Whether handling intricate contours or rapid material removal, the linear guide rails enable the machine to perform with remarkable accuracy, minimizing deviations and maximizing end-product quality.
The three-axis guide rails of the Vertical Machining Center are wrapped in a fully enclosed stainless steel guard. This ingenious design ensures optimal chip removal and protection, maintaining a clean and efficient workspace. By effectively containing debris, the machine's longevity and precision are preserved. The synergy between the protective enclosure and efficient chip management fosters an environment conducive to unhindered machining and extended tool life.
The machine's power and precision are inextricably linked to its choice of high-power servo motors. These motors, designed for high load capacities, drive the feed with unwavering force and precision. This synergy of power and precision enables the machine to tackle a wide range of materials and applications, from delicate intricate work to heavy-duty machining. The result is a versatile machining center that doesn't compromise on performance, no matter the task at hand.
Reliability Enshrined: Dust-Proof Electrical Components
The commitment to excellence doesn't end with the machine's construction; each Vertical Machining Center undergoes rigorous inspection to meet international standards. The combination of laser and circular inspection techniques verifies and fine-tunes the machine's accuracy, ensuring that it adheres to the most stringent tolerances. This unwavering dedication to precision guarantees that the machine is a reliable ally in achieving the highest levels of machining accuracy.
Ensuring the reliability of electrical components is a mission-critical aspect of modern machining. The Vertical Machining Center excels in this realm with its dust-proof electrical box housing meticulously chosen imported brands. This strategic selection not only ensures outstanding stability but also provides an effective barrier against dust infiltration. Additionally, the waterproof wire holes act as guardians, preventing oil and gas intrusion and enhancing the longevity and performance of electrical components.
In the pursuit of manufacturing excellence, the Vertical Machining Center stands tall as a beacon of precision, reliability, and efficiency. Its foundation of high-grade Meehanite castings, coupled with imported linear guide rails and high-power servo motors, creates a symphony of performance that can handle diverse machining challenges. With meticulous protection for electrical components and a commitment to uncompromising accuracy, this machining center redefines what's possible in modern manufacturing. As industries evolve, the Vertical Machining Center continues to be an essential partner, pushing boundaries and setting new standards for precision and efficiency in machining operations.
